Distortion or Perspective Correction Tutorial [Elements]

If you have Photoshop, please go to this page instead.

This tutorial is for those times when you need the lines in your photo to be straight and square.  It'll be most useful to real estate photographers, but everyone has a problem with lines from time to time.

Apology: I don't know how this method works if you use Lightroom in conjunction with Elements, sorry.  But Lightroom has its own distortion controls in the "Lens Correction" tab, so try those and see if they give you sufficient control.

Step 1: Open

Process your raw file in ACR in the usual manner, then press "Open Image" to bring it into Elements.


(Distortion is like Liquify - it must be done as the very first step in your Photoshop editing workflow, immediately after your raw editing, before any layer work.)

Step 2: Canvas Size

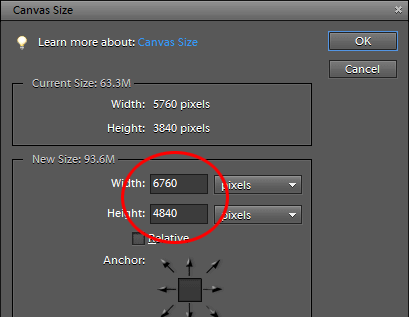

Go to Image>Resize>Canvas Size.  Add some extra size to the file.  I usually add a thousand pixels to each dimension, as shown here:


Step 3: Set Grid

Go to Edit>Preferences>Guides & Grids.

In the Grid section, set up your gridlines every 5 percent, with 1 subdivision, then press OK:


(The above is a suggestion only.  I've found 5/1 works well in most cases.  But of course you can vary it to suit your needs.  There's more info about grids here.)

Step 4: Show Grid

Press Ctrl/Cmd ' (apostrophe) or go to View>Show>Grid, to turn on the gridlines.

Step 5: Place

Go to File>Place.  Choose the same file.  When you choose it, it will open in ACR again:


Don't make any changes, just press the "Open Image" button right away.  It will place itself on top of the first version (see the two layers in the layers panel?):


Right now you're probably wondering why on earth you would place a new version of the same file on top of itself?  Yes, I know it seems weird.  But it's vitally important that we do this, because by using the Place function, the photo is a "Smart Object".  Smart objects are special layers which can be manipulated as often as we like, but never lose their original quality.

(By the way, many thanks to Vannessa Edwards for allowing me to use this photo.)

Step 6: Distortion

From here on, what you do is up to you.  Every photo needs different distortion to get the lines right.  The more you practice with the various Transform functions, the more skilled you'll become.

Let's take a look at what I did with this one.  First, I rotated it slightly so that the horizontal brickwork was, in fact, horizontal:


Now I was happy with the horizontals, but not the verticals.  See how the vertical lines are slanting inwards on each side?

So, without pressing Enter or Return or anything like that, I went up to Image>Transform> and chose Perspective:


That allowed me to pull the top edge wider, until I was happy that the vertical lines in the photo lined up with the vertical lines of the grid (see why the grid is important?):


That was ok, but I was concerned that the poor guy looked a bit ... well, stumpy.  So I went to Image>Transform>Free Transform, so that I could pull the whole photo up a bit to make him taller:


(The "Free Transform" function is the one to use when you want to rotate or resize.)

Step 7: Finish and assess

When I finally thought I had it right, I pressed Enter to commit the transformation, then Ctrl ' to hide the grids again, so I could get a clear view of my result.

To help me assess, I could turn the layer on and off a few times to compare my before-and-after.


Step 8: Transform some more (if needed)

If you're happy, that's great.  But if you're not happy, no problem - just press Ctrl T again, and then keep on tweaking.  As I said earlier, because the image is a Smart Object, we can tweak the distortion as much as we like, and never lose any of the original file quality.

Step 9: Delete original

Once it's done, you don't need the Background layer any more.  You can drag it to the Trash Can:


Step 10: Normal editing

Now you can save the PSD file, then proceed with your normal editing.  Remember,  DO NOT CROP the image.  Normal cropping rules apply - never crop during editing.  Only crop when it's time for output.


Another example:

Thanks to Jacki Archibald for the use of this lovely photo.  Here's the original, and it was the subject of some debate on Facebook today as to whether it should be adjusted at all:


For the sake of the exercise, I used the Perspective and Skew functions to do this:


I hope you've found this useful.  As always, visit me at my Facebook group if you have any questions or problems.  And please don't despair if you don't master it right away.  It takes a little while to figure out what all the Transform options do.  And of course, the best way to learn is to play play play.  Have fun!
